ESTECH.MNV

Features

• This tool has a feature to convert time history data of gap reaction force generated on stator of electric motor and calculated by electromagnetic field analysis into excitation force bulk data in MSC Nastran format.
• This tool easily generates dynamic load data for every order to analyze which is required to conduct vibration analysis of electric motor vibration caused by electromagnetic force with MSC Nastran.

Tool Overview

Name	ESTECH.MNV
Feature	Software to convert electromagnetic field analysis output into structural analysis input data format
Platform	Compatible with Windows7,10
Optional feature	MNV_POST (Electromagnetic excitation force analysis software)
Input data	Time history output data of 2D transient response analysis calculated by JMAG Shape model of stator core (MSC Nastran bulk data format) Check the presence or absence of Skew, electric current condition, etc.
Output data	Excitation force bulk data in MSC Nastran format(radial force and tangential force)

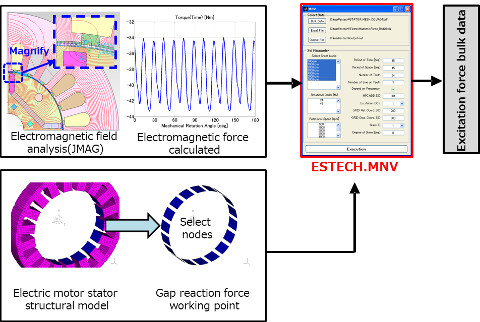

Fig.1 Schematic diagram of generating excitation force bulk data

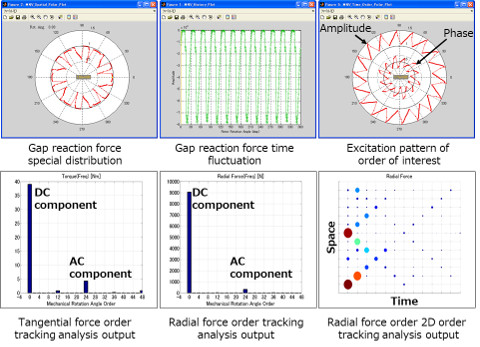

Fig2. MNV_POST output example

Deliverables

• A set of executable format file
• License configuration: Node lock or Net work
• User's manual in Japanese language
• Maintenance and Support
        Bug fix if bugs are confirmed in the program
        Nonscheduled version up
        License relocation
        Any telephone support is excluded

Contact

For further information, please contact below.
