ESTECH.SimFlex

Feature

• The software makes it possible to import elastic body model into Simulink control analysis model.

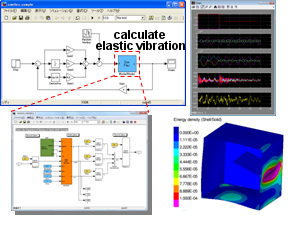

• If the elastic vibration needs to be considered in control system design by Simulink, a block diagram representing elastic vibration is generated from FE analysis in a quite short time.
• The software is also usable to conduct mode contribution analysis by using GUI to select vibration mode to be active/de-active easily.
• Furthermore, reduction of DOF becomes possible by making use of principal modes calculated by ESTECH.NAST+ and the data outputs also become possible to calculate deformation shapes and energy contributions as well as conduct detailed analysis to narrow down effective parts for improving noise and vibration performance.

ツール概要

Name	ESTECH.SimFlex
Function	Transforming to Simulink model file from MSC Nastran Bulk Data modal model which is output from ESTECH.NAST+ (Acoustic mode is also applicable)
Software Environment	MSC Nastran 2008, 2012 Mathworks MATLAB/Simulink 7.6.2 (R2010bSP2)     ESTECH.NAST+
	ESTECH.SimFlex is approved by MathWorks as a third party product to enhance performance of MATLAB/Simulink。
