Motion Capture

Recently, there is a high demand of mechanism analysis of phenomena by capturing motion of structures with time history. In order to satisfy the demand, the company processes high speed camera, laser displacement gauge, linear encoder and so on, which can be used properly to meet the objective of the measurement, the objective hardware and the phenomenon.

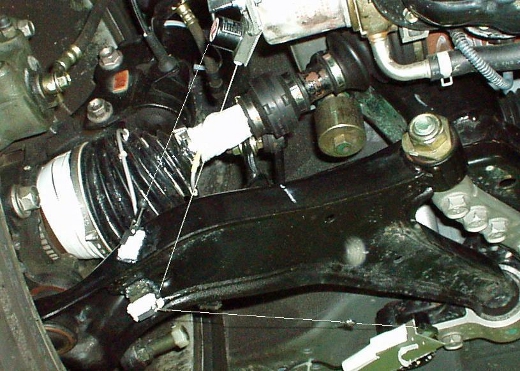

The measurement is not able to be done by simply applying test instruments such as sensors. In case of automobile under running condition, it is impossible to measure the motion of driveshaft directly.

However, the company have resolve the impossible subject and made it possible to combine kinematic mechanism analysis with the measurable motion of engine, body and suspension.

　　　
　　　　　　

Example of measurement and analysis system configuration

Software
　- PULSE Labshop (Online Real-time Analysis Software)
　- PULSE Reflex (Offline Signal Processing Software)

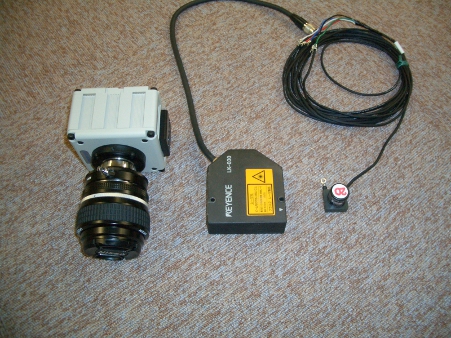

Hardware
　- LAN-XI (Measuring Front-End)
　- Take-up Displacement Gauge
　- High-speed Camera
　- Laser Displacement Gauge

Hardware & Software

In addition to conducting test projects, the company proposes the best fit test hardware and software to satisfy clients demand and requirement.
