Springback Behavior Simulation
Summary

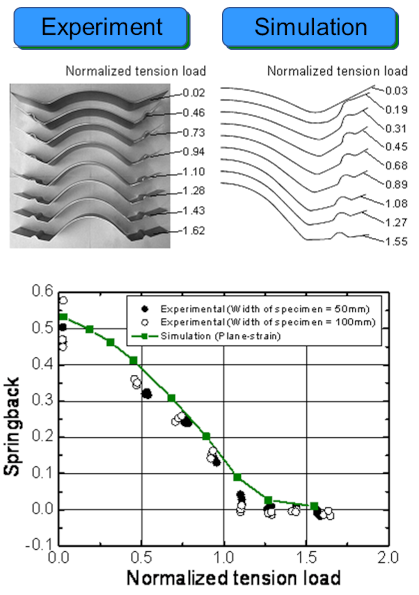

For the productivity improvement, it is quite essential to predict the amount of springback under plate forming process. Therefore, an accuracy improvement is demanding very highly. The example simulates the springback behavior of steel plate under tensile bending condition, which predicts precisely the tendency of its behavior under the forming process, which the more the tensile force on the test piece increases the less the amount of springback behavior is observed.
Reference Materials
-
Measurement and Analysis of Work Hardening of Sheet Steel Subjected to Plane-strain Tension0
2002 ABAQUS User's Meeting in Japan 2002-October -
Measurement and Analysis of Work Hardening of Sheet Steel Subjected to Plane-strain Tension
TETSU TO HAGANE Vol. 88, No. 6 Separate Print 2002-June
