Structure-Control Coupling Analysis
Three ways of the analysis and unique analysis technology of the company are introduced.
Summary
The company proposes primarily three ways of structural-control coupling analysis, which are described below.
1) Plug a structural model of matrix or transfer function formats into control analysis software such as MATLAB/Simulink
-> for mainly control design
2) Plug a control system of transfer function format into structural analysis software such as MSC Nastran
-> for mainly structural design

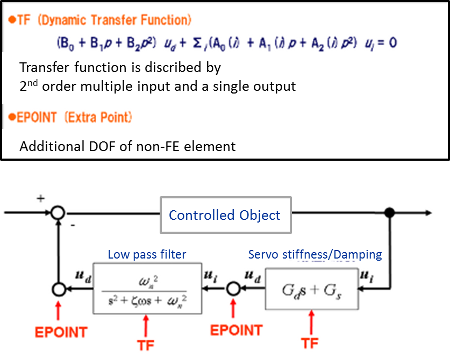

The approach is an application of MSC Nastran TF card.
3) Plug a control system and a structural model into kinematic mechanism analysis software such as Adams。
-> for Kinematic Mechanism + control design
| Strong Point | Week Point | |
|---|---|---|
| 1 | Easy to study control design | Hard to check on mode shapes |
| 2 |
Easy to output mode shapes Easy to study structural design |
No advanced control analysis capability |
| 3 |
Nonlinearity is included
|
Analysis load is high
|
There exists two ways of coupling analysis such as Adams and Simulink or Adams and MSC Nastran elastic element (Adams Flex).
Analysis Method using MSC Nastran TF card
Relevant ESTECH original software
Reference Material
-
An Introduction of the Structural Dynamic Analysis with Feedback control using MSC Nastran
MSC Nastran VPD Conference 2003-11
