Solenoid Valve Response Analysis
Summary

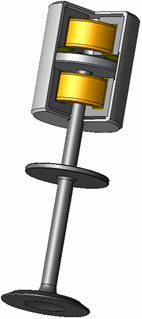

The example shows an response analysis of solenoid valve for a vehicle engine whose actuator utilizes the electromagnetic force.
What is done so far
- Critical speed analysis of an engine for valve operation
- Geometry design for a valve response improvement

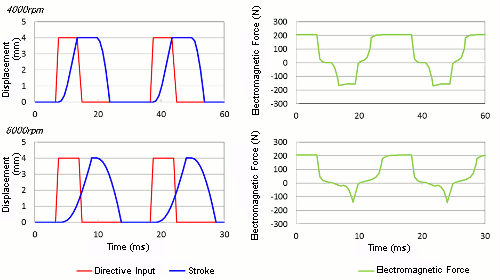

Transient Response Analysis

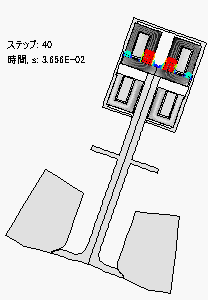

Valve Motion at 4000 rpm (Contour：magnetic flux density、Vector：Electromagnetic power）
